ENGINEERING-GRADE METAL ADDITIVE MANUFACTURING

Metal 3D Printing Services India
DMLS & SLM Metal Printing.

Manufacture high-performance Titanium, Inconel & Aluminium components with APJ 3D's engineering-verified Metal 3D Printing Services India. Direct metal laser sintering for aerospace, motorsport, medical implants, and conformal tooling.

Get Free Consultation Upload CAD Model

Why Conventional Manufacturing Stops Here

CNC Machining

✕ Cannot produce internal cooling channels
✕ Cannot manufacture internal lattice structures
✕ High waste for lightweight reduction
✕ Tool reach limitations on complex geometry

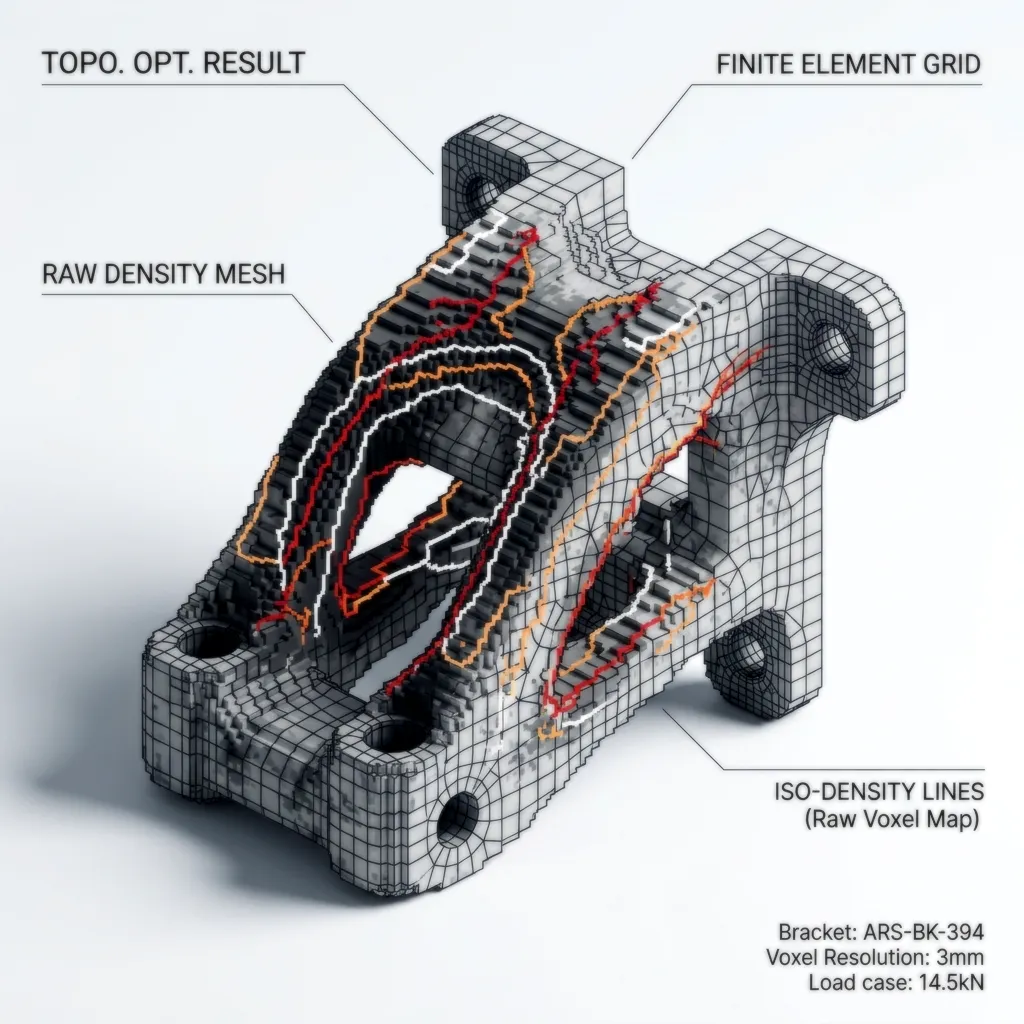

Direct Metal 3D Printed Organic Lattice Structure

Metal 3D Printing Services India

✓ Conformal internal cooling channels
✓ Generative organic geometry
✓ Lightweight topological lattice design
✓ Zero tooling constraints

Direct Metal Laser Sintering (DMLS) bypasses the geometric limits of CNC machining, enabling engineers to consolidate assemblies and radically reduce part weight.

DMLS vs SLM Interactive Lab

Compare Direct Metal Laser Sintering and Selective Laser Melting. Expand cards to view simulated processes and materials.

DMLS

Direct Metal Laser Sintering

TitaniumInconelMaraging SteelAerospaceMedical

Lasers precisely sinter metal powder together without fully melting the material. Ideal for complex micro-structures and alloys where full melting causes internal stress.

SLM

Selective Laser Melting

Stainless SteelAluminiumTool SteelProductionTooling

Fully melts the metal powder into a homogenous liquid pool layer by layer. Yields near 100% density and isotropic properties equivalent to billet metal.

Engineering Property Comparison

Microstructure

Density

Strength

Surface Finish

DMLS

Sintered Matrix

SLM

Homogenous Melt

Material Intelligence Hub

Titanium
Ti6Al4V

Inconel
IN718

Aluminium
AlSi10Mg

Stainless
316L

Maraging
MS1 Steel

Titanium (Ti6Al4V)

Exceptional strength-to-weight ratio and bio-compatibility. Ideal for aerospace components, motorsport parts, and medical implants.

High Strength

Lightweight

Corrosion Resistant

Engineering Production Line

1. CAD & DfAM

2. Orientation

3. Printing

4. Support Removal

5. Inspection

CAD Preparation & DfAM

APJ 3D engineers review the geometry for printability, orient the part to minimize support structures, and apply Design for Additive Manufacturing (DfAM) principles to reduce mass while maintaining structural integrity.

Industry Applications

Aerospace

Titanium Brackets

Lightweight topology

Medical

Spinal Implants

Porous osseointegration

Automotive

Fluid Manifolds

Consolidated assemblies

Tooling

Mold Inserts

Conformal cooling channels

Engineering Project Blueprint

Phase 01: Requirement

Topology Optimisation

Aerospace client required a 40% weight reduction on a structural bracket while maintaining load-bearing capacity.

Phase 02: DfAM

Support Generation

Geometry altered to reduce overhangs. Complex lattice interior generated and minimal support structures assigned.

Phase 03: Production

SLM Titanium Build

Printed in Ti6Al4V via Selective Laser Melting. Built over 48 hours in a controlled argon atmosphere.

Phase 04: Delivery

Inspection & Handover

Supports CNC removed, surface shot-peened, and CMM inspected. Achieved 45% weight reduction.

Technical Service Overview Reviewed by APJ 3D Engineering Desk • Updated September 2026

What is Metal 3D Printing Services India?

Industrial 3D Printing (Additive Manufacturing) is the tool-less, layer-by-layer fabrication of physical parts directly from 3D CAD data using industrial technologies including HP Multi Jet Fusion (MJF), Selective Laser Sintering (SLS), Stereolithography (SLA), Fused Deposition Modeling (FDM), and Direct Metal Laser Sintering (DMLS).

When to Select This Service

Choose industrial 3D printing when rapid prototypes are required in 24–48 hours, for low-volume bridge production (50 to 5,000 units) without tooling CapEx, or for complex internal channels and lattice lightweighting impossible to machine conventionally.

Metal 3D Printing Services India Technical Specifications

Technical Capabilities & Verification Standards

Verified engineering parameters, hardware precision, and compliance benchmarks applied across all deliverables.

Engineering Parameter	APJ 3D Capability & Precision Range	Compliance Standard / Verification
Supported Technologies	HP MJF 5200/4200, SLS, Industrial SLA, Metal DMLS/SLM, High-Temp FDM	ISO/ASTM 52900 Additive Standards
Available Materials	PA12, PA11, TPU 88A/95A, ABS-like Resin, Clear Resin, AlSi10Mg, 316L, Ti6Al4V, PEEK	Full Material Traceability Certificates
Dimensional Tolerances	±0.2 mm or ±0.2% (MJF/SLS); ±0.1 mm (SLA); ±0.2% (DMLS Metal)	ASME Y14.5 / ISO 286 Inspection
Layer Resolution	50 to 120 microns (Technology dependent; MJF at 80 µm)	Calibrated Laser / Agent Slicing
Maximum Build Envelopes	Up to 380 x 284 x 380 mm (MJF); 600 x 600 x 400 mm (SLA); 250 x 250 x 300 mm (DMLS)	Batch 3D Nesting Supported
Post-Processing & Finishing	Bead Blasting, Vapor Smoothing, Black Dyeing, CNC Secondary Tapping, Heat Treatment	Cleanroom / Cosmetic Grade Standards
Production Lead Times	24 to 48 Hours (Prototypes); 3 to 5 Business Days (Batch Runs 50–5,000 units)	Express Nationwide Dispatch from Hosur / Bengaluru

FAQ

Frequently Asked Questions

Which 3D printing process is right for my application?

For functional, airtight plastic assemblies and batch runs (50–5,000 parts), HP MJF with PA12 or PA11 is optimal. For high-detail visual prototypes and master patterns, SLA is best. For end-use aerospace or medical metal brackets, Metal DMLS (AlSi10Mg / 316L) is recommended.

How does 3D printing cost compare to injection moulding?

3D printing has $0 tooling cost and low setup time, making it significantly cheaper for quantities between 1 and 5,000 parts. Injection moulding requires expensive upfront tooling ($3,000–$25,000) and 4–8 weeks lead time, only becoming economical above 10,000 units.

What CAD file formats are accepted for 3D printing quotes?

We accept standard 3D solid formats including STEP (.step, .stp), Parasolid (.x_t), IGES (.igs), and STL (.stl). Native CAD files from SolidWorks, NX, and CATIA are also supported.

What is the typical turnaround time for orders in India?

Standard functional prototypes are dispatched within 24 to 48 hours. Batch production runs of 100 to 5,000 parts deliver within 3 to 5 business days with pan-India express courier delivery.

Can 3D printed parts be tapped with threads or post-machined?

Yes. We offer secondary CNC machining, brass threaded heat-stake inserts, reaming, tapping, vapor smoothing, and painting to meet end-use assembly specifications.

Metal 3D Printing Services India DMLS & SLM Metal Printing.
